China Hangzhou EPS Machine Factory EPS Polystyrene Block Panels Moulding Molding Machine Wall Foam Panel Production Line

Introducing, the Guiju’s EPS Polystyrene Block Panels Moulding Machine, a top-of-the-line product from the renowned China Hangzhou EPS Machine Factory. This advanced molding machine is designed to revolutionize the production of wall foam panels by creating high-quality EPS polystyrene blocks with precision and efficiency.

With the Guiju’s EPS Machine, manufacturers can easily create EPS polystyrene blocks that are perfect for use in a variety of applications, including wall insulation, packaging, and construction. The machine is equipped with state-of-the-art technology that ensures each block is produced to the exact specifications required, resulting in a consistent and uniform product every time.

One of the key features of the Guiju’s EPS Machine is its versatility. The machine is capable of producing a wide range of EPS block sizes, making it suitable for projects of all sizes. Whether you are creating small panels for a residential building or large blocks for a commercial construction project, the Guiju’s EPS Machine can handle the job with ease.

In addition to its exceptional performance, the Guiju’s EPS Machine is also incredibly easy to operate. The intuitive control panel allows operators to adjust settings and monitor the production process with ease, ensuring a seamless and efficient workflow. The machine is also built to last, with a durable construction that is designed to withstand the rigors of daily use in a manufacturing environment.

The Guiju’s EPS Polystyrene Block Panels Moulding Machine is backed by the China Hangzhou EPS Machine Factory's reputation for quality and reliability. With over years of experience in the industry, the factory has earned a reputation for producing top-of-the-line machinery that meets the needs of manufacturers around the world. When you choose a product from the China Hangzhou EPS Machine Factory, you can trust that you are investing in a high-quality machine that will deliver exceptional results for years to come.

If you are in the market for a reliable and efficient EPS polystyrene block molding machine, look no further than the Guiju’s EPS Machine. With its advanced technology, versatile design, and ease of use, this machine is the perfect solution for manufacturers looking to streamline their production process and create high-quality EPS blocks for a variety of applications. Invest in the Guiju’s EPS Machine today and experience the difference for yourself

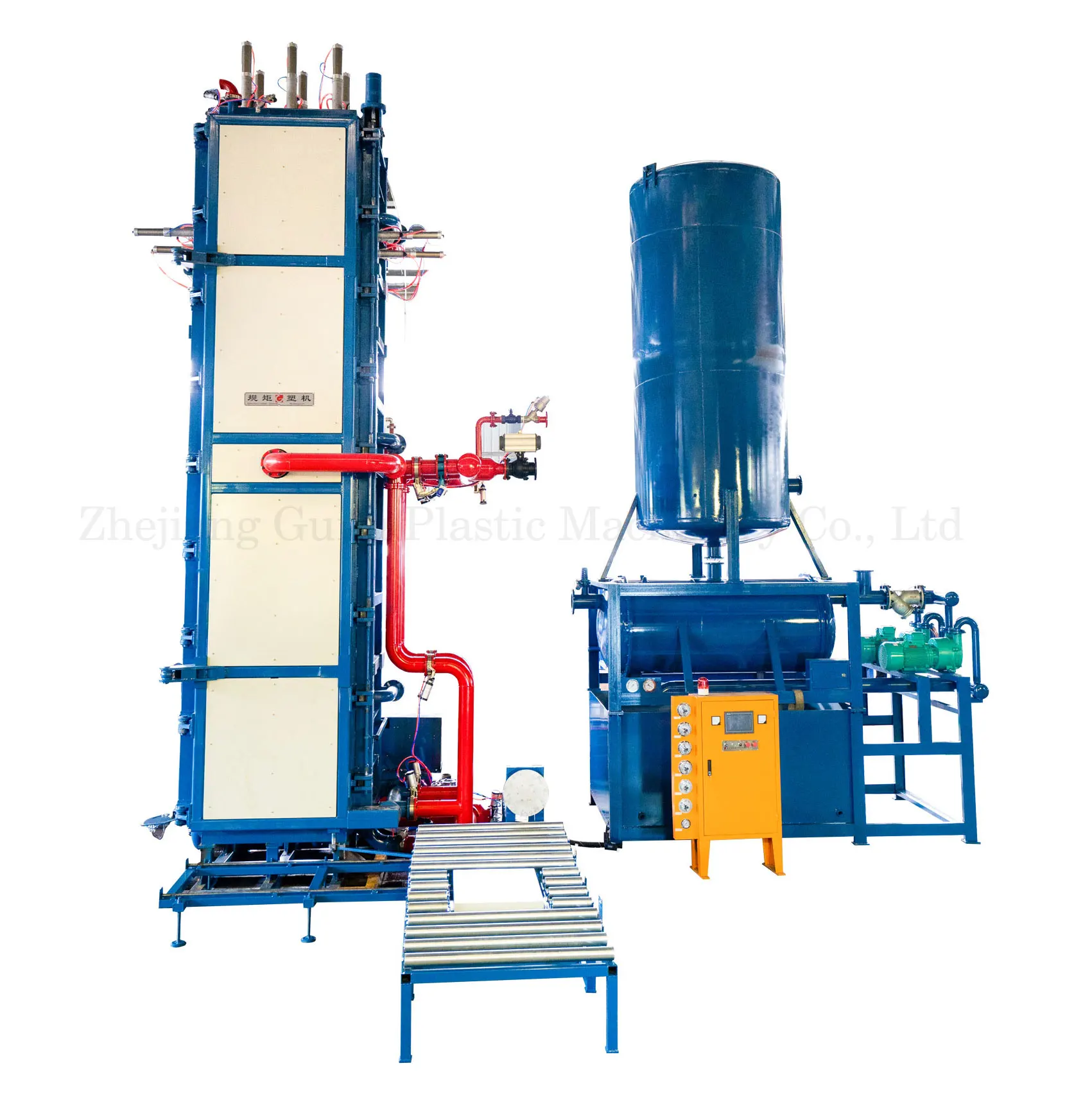

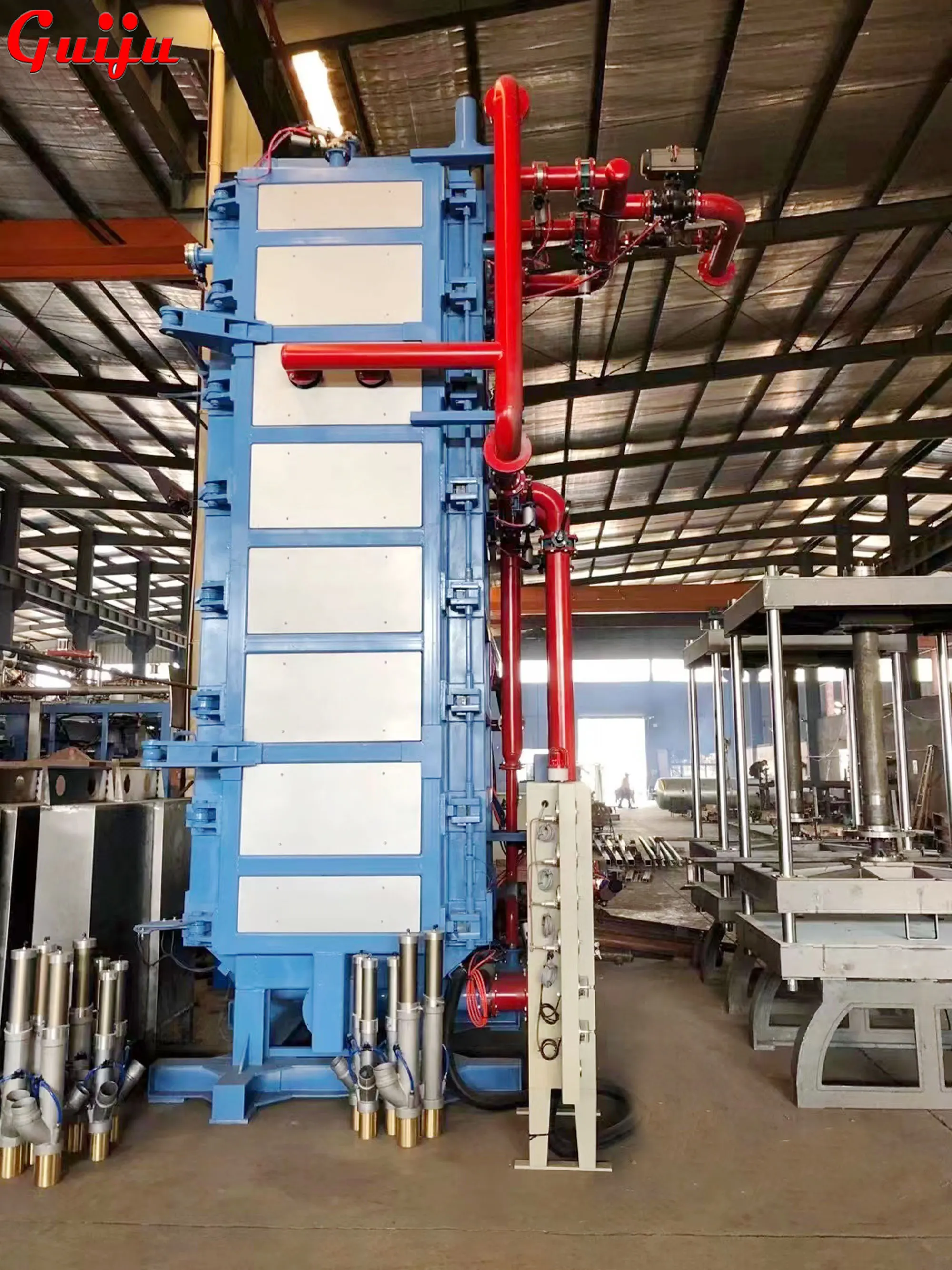

Automatic EPS block molding machine with air cooling

Main feature:

1. this machine also has the advantage of horizontal block molding machine and more suitable for automatic transmission; 2. The machine including:main machine body, transfer rack and weighting device; 3. The mold plates areal welded by high-strength rectangular tubes and steel plates, heat treated, sandblasted and rust removal, extended service life. 4. The machine adopts electrical appliances and multiple mechanical safety protections. 5. The machine occupies less area and has low moisture content

Note:

1. Special specifications can be customized, and adjustable size can also be customized;

2. Optional vacuum system; 3. Optional pressure sensor

Model			unit	GJ-BL-2000	GJ-BL-3000	GJ-BL-4000	GJ-BL-6000
Mould Cavity Size			mm	2040*1240*1030	3060*1240*1030	4080*1240*1030	6100*1200*1030
Foam block size			mm	2000*1200*1000	3000*1200*1000	4000*1200*1000	6000*1200*1000
Steam System	inlet size	mm	DN150	DN150	DN200	DN200
		inlet pressure	bar	6---8	6---8	6---8	6---8
		consumption	kg/cycle	20---35	30---55	40---70	70---90
Compressed Air System	inlet size	mm	DN65	DN65	DN80	DN80
		inlet pressure	bar	5---7	5---7	5---7	5---7
		consumption	m³/cycle	1-1.5	1.5-1.8	1.8-2	2-2.3
Drainage	drainage outlet	mm	DN125	DN125	DN150	DN150
		fan outlet	mm	DN150	DN150	DN150	DN200
Cycle Time			min/cycle	5---8	5---8	6---10	8---12
Installed Power			kw	11kw	11kw	15kw	18.5kw
Overall Size			mm	4000*5800*3300	4000*5800*4300	4000*5800*5300	4000*5800*7300
Machine Weight			kg	6800	8000	9800	12600
