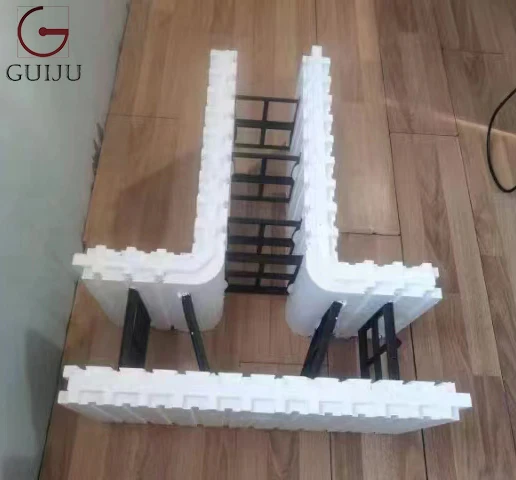

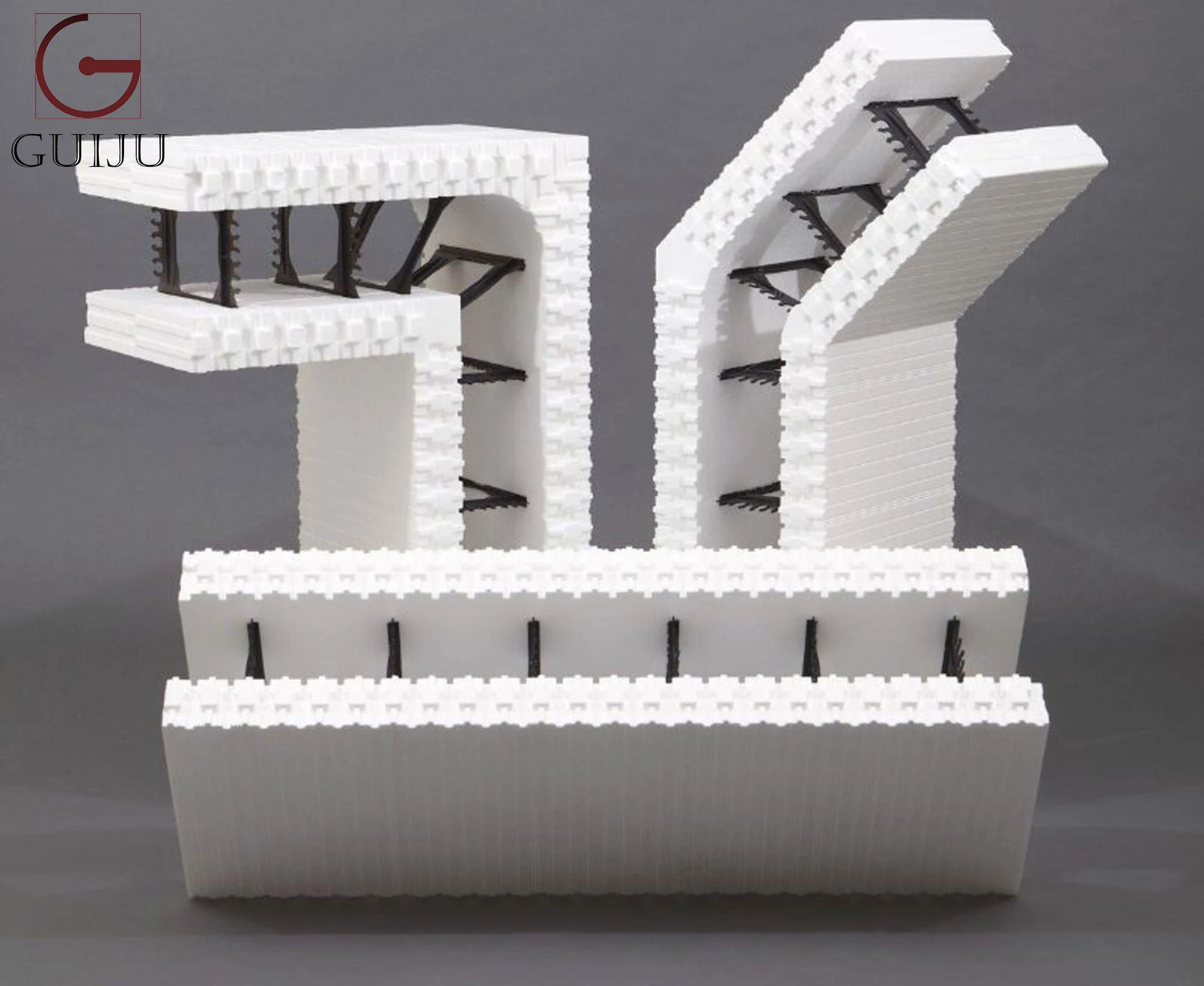

China Manufacturer's Eps Machine Production Foam ICF Insulated Concrete Forms-Hordi Blocks Vacuum Forming Manufacturing Plants
- Overview
- Recommended Products

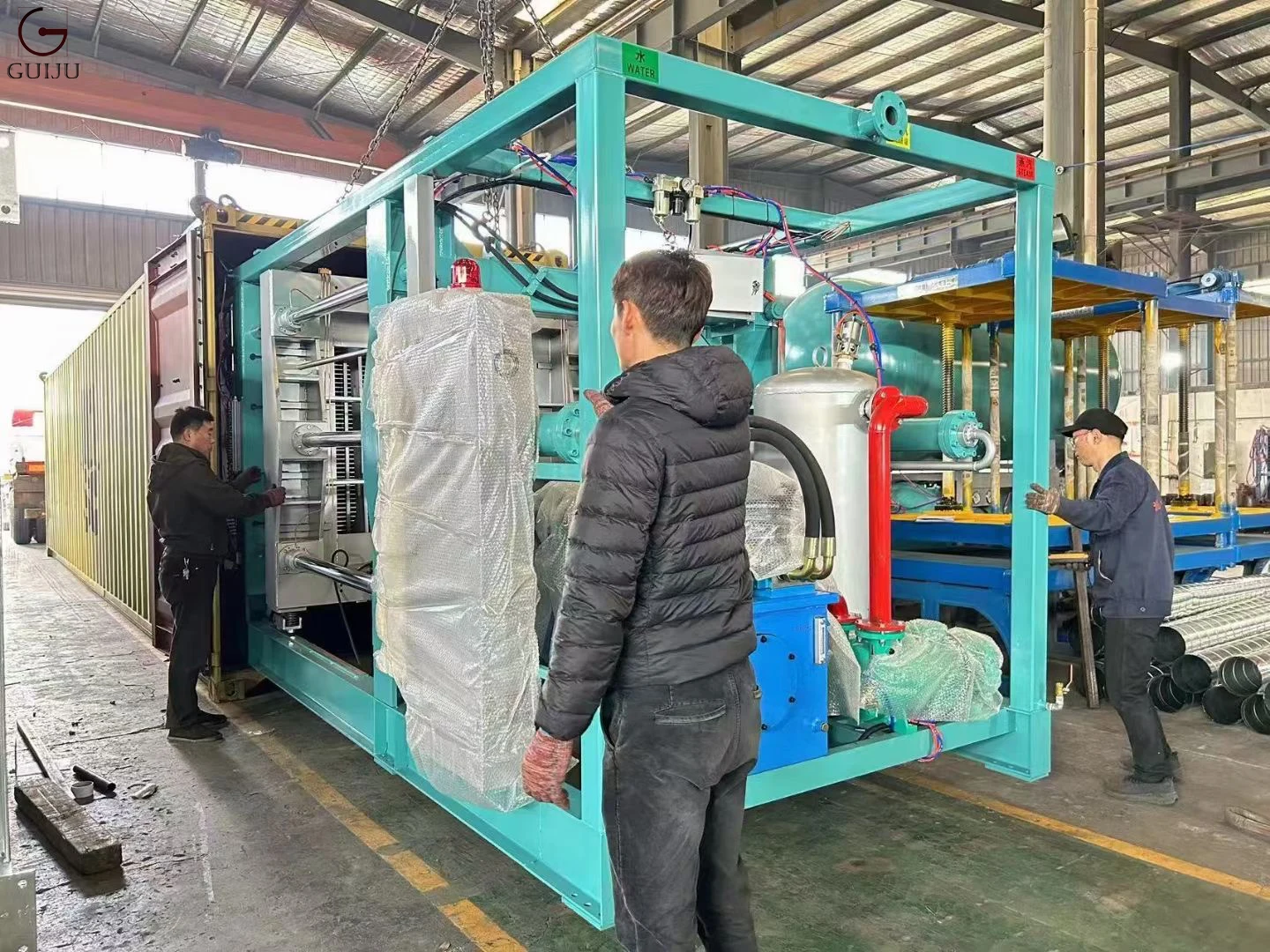

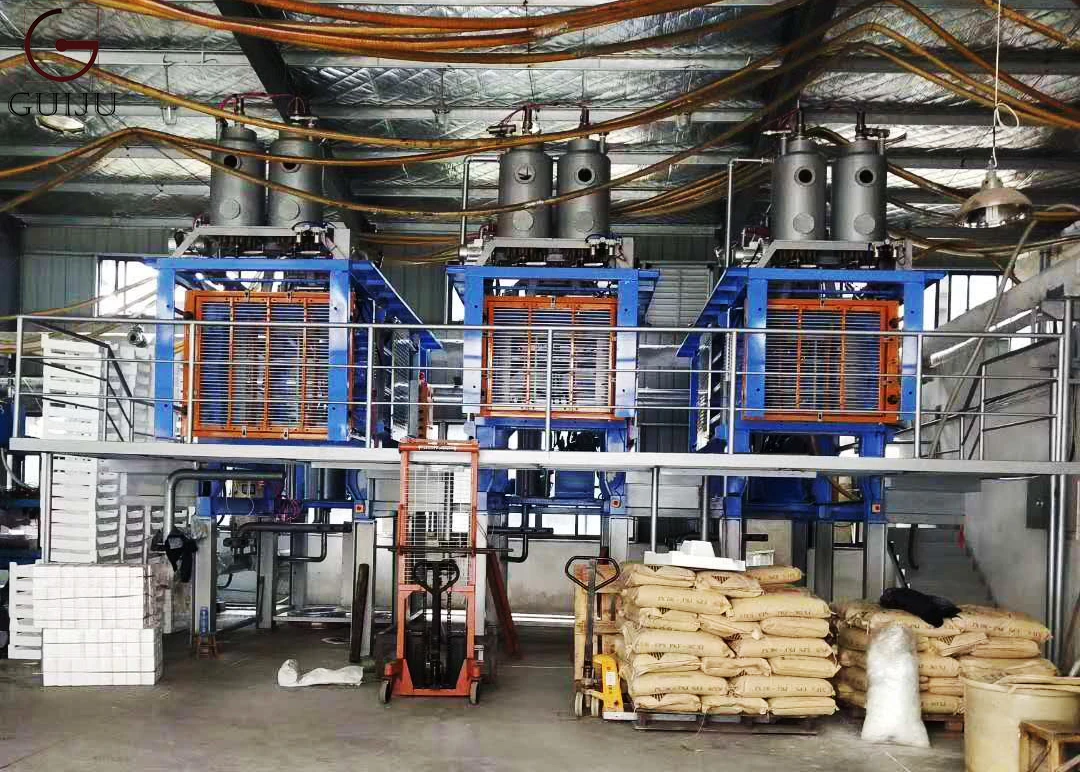

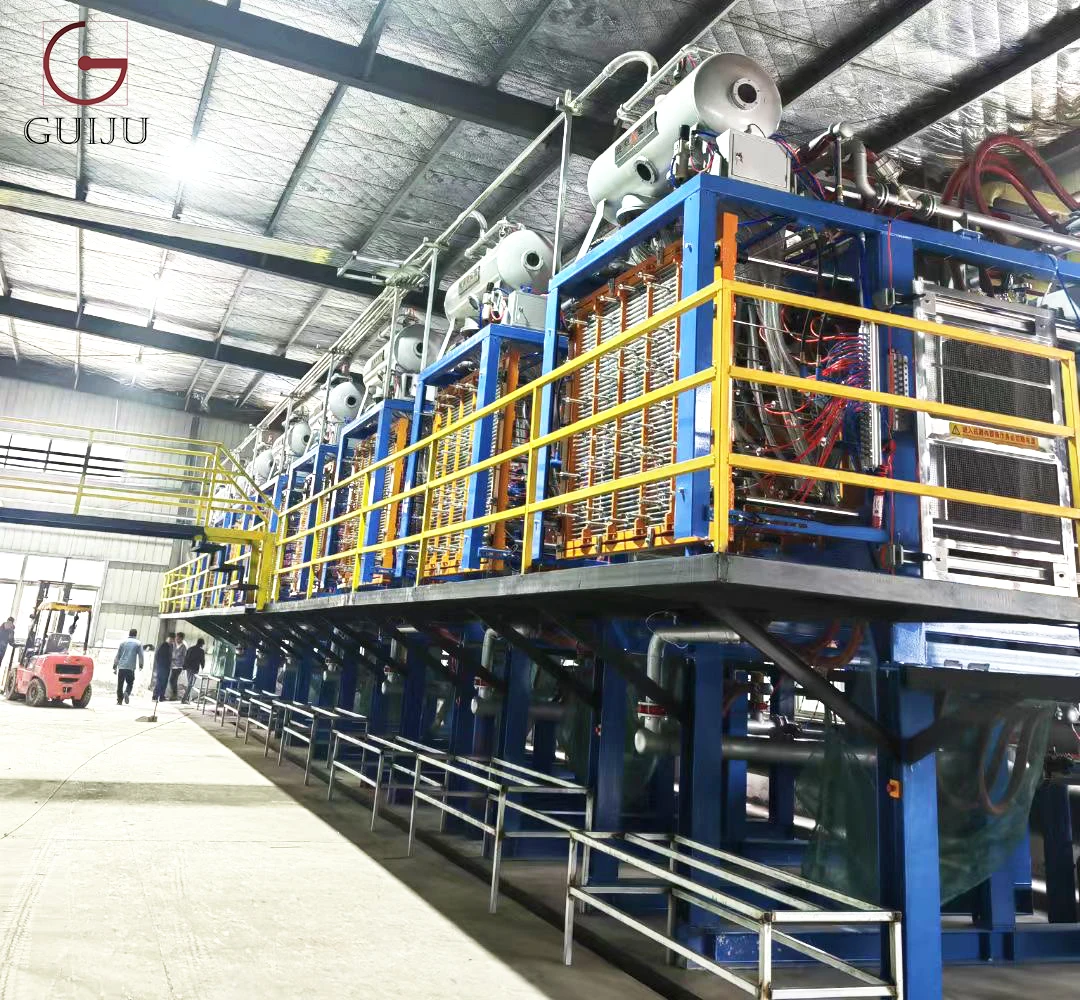

Top sales automatic EPS shape molding machine with vacuum cooling
Main feature:
1. It is made of 16---22mm steel plate welded with carbon dioxide shielded welding. All templates are treated with high temperature tempering and high pressure shot peening, so it has high strength and high surface hardness; 2. The template is processed by CNC numerical control, after processing, the surface is sprayed with zinc to prolong the service life of the whole machine; 3. The hopper adopts horizontal or vertical double turntable, total have 44 pcs discharge outlet, can meet customer’s demand for multi-product, multi-filling gun; 4. It adopts the heating principle of low pressure and large flow, and with double steam valves, steam valve is controlled by balance valve and air control valve, make sure the steam pressure more precise
|
Subjects
|
Unit
|
GJ-ZB-1210
|
GJ-ZB-1412
|
GJ-ZB-1513
|
GJ-ZB-1715
|
GJ-ZB-1816
|
||
|
Standard mould size
|
mm
|
1200×1000
|
1400×1200
|
1500×1300
|
1750×1550
|
1850×1600
|
||
|
Rear Window size
|
mm
|
1100×900
|
1250×1120
|
1350×1150
|
1600×1400
|
1700×1450
|
||
|
Max. Product size
|
mm
|
1030×830
|
1230×1030
|
1330×1130
|
1580×1380
|
1680×1430
|
||
|
Max. thickness size
|
mm
|
400
|
400
|
400
|
400
|
400
|
||
|
Cycle Time
|
S/Cycle
|
60～100
|
60～150
|
90～180
|
100～200
|
100～200
|
||
|
Installation power
|
kw
|
11
|
12.5
|
12.5
|
16.5
|
16.5
|
||
|
Oversize L*W*H
|
mm
|
5100×2100×3200
|
5100×2300×3400
|
5100×2400×3600
|
5200×2700×3800
|
5200×2800×3900
|
||
|
Machine Weight
|
Kg
|
5200
|
5600
|
5800
|
6700
|
7000
|
||
