Eps Foam Machine Manufacturer Eps Expandable Polystyrene Foam Board Sandwich Panel Production Line Eps Block Molding Machine
- Overview
- Recommended Products

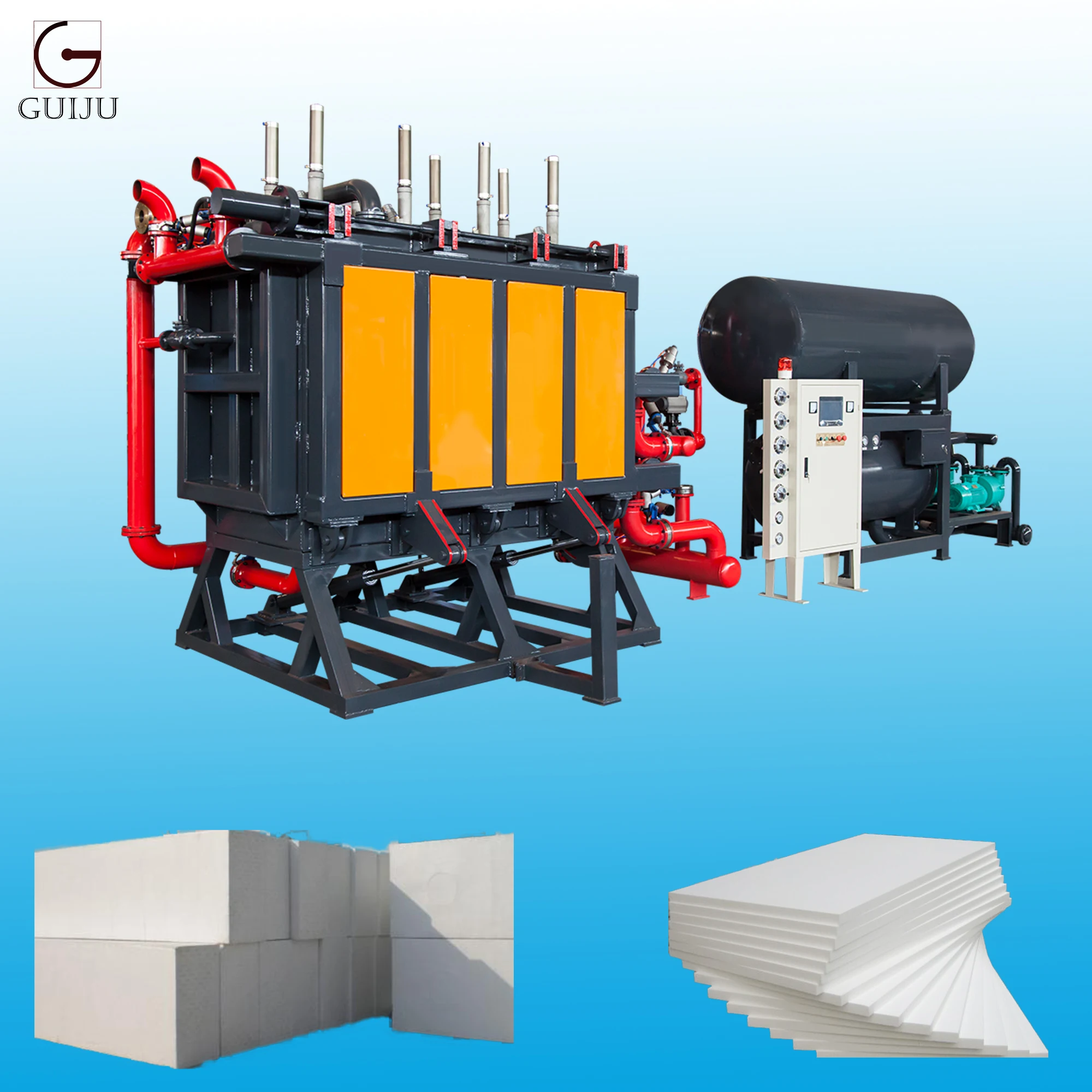

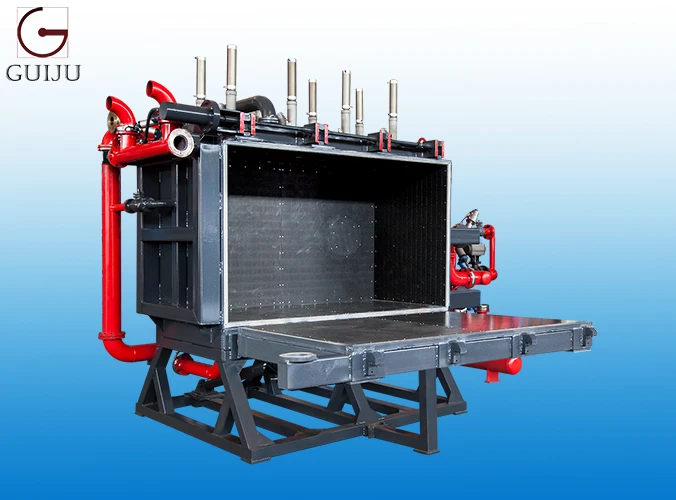

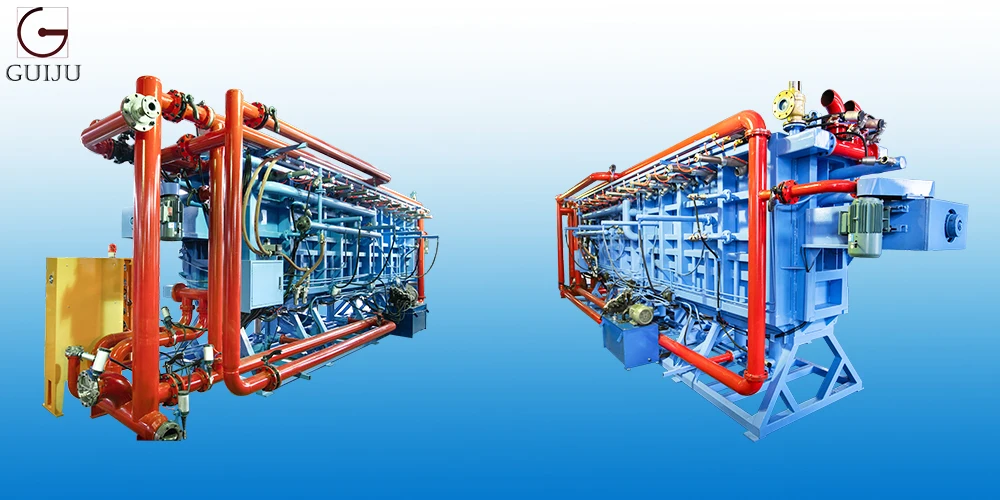

Automatic EPS block molding machine with vacuum cooling
|
model
|
unit
|
GJ-BZ-2000
|
GJ-BZ-3000
|
GJ-BZ-4000
|
GJ-BZ-6000
|
|||
|
mould Cavity Size
|
mm
|
2040*1240*1040
|
3050*1240*1040
|
4070*1240*1040
|
6090*1240*1040
|
|||
|
foam block size
|
mm
|
2000*1200*1000
|
3000*1200*1000
|
4000*1200*1000
|
6000*1200*1000
|
|||
|
steam system
|
Inlet size
|
mm
|
DN125
|
DN125
|
DN150
|
DN150
|
||
|
Inlet pressure
|
bar
|
5---8
|
5---8
|
5---8
|
5---8
|
|||
|
Consumption
|
kg/cycle
|
30-50
|
40-70
|
55-85
|
70-130
|
|||
|
compressed air system
|
Inlet size
|
mm
|
DN50
|
DN50
|
DN65
|
DN65
|
||
|
Inlet pressure
|
bar
|
5-8
|
5-8
|
5-8
|
5-8
|
|||
|
Consumption
|
m³/cycle
|
1-1.5
|
1.5-1.8
|
1.8-2
|
2-2.3
|
|||
|
injector sizeInjector
|
injector NO.
|
8pcs
|
10pcs
|
16pcs
|
22pcs
|
|||
|
injector size
|
DN80
|
DN80
|
DN80
|
DN80
|
||||
|
drainage pipe
|
mm
|
DN125
|
DN125
|
DN150
|
DN150
|
|||
|
vacuum drainage
|
mm
|
DN80
|
DN100
|
DN125
|
DN125
|
|||
|
condensation drainage
|
mm
|
DN100
|
DN125
|
DN125
|
DN125
|
|||
|
cycle Time 15g/l
|
min/cycle
|
3
|
4
|
5
|
6
|
|||
|
vacuum pump power
|
kw
|
5.5kw*2
|
5.5kw*2
|
11kw*2
|
11kw*2
|
|||
|
installed Power
|
kw
|
20.5
|
22
|
33
|
33
|
|||
|
overall Size
|
mm
|
7500*3200*3500
|
5500*3200*3500
|
11000*3200*3500
|
13000*3200*3500
|
|||
|
machine weight
|
kg
|
6000
|
8000
|
10000
|
12000
|
|||
