EPS Machine Manufacturer Sale EPS Block Board Molding Machine Expanded Polystyrene Thermocol Sheets Wall Panel Production Line
- Overview
- Recommended Products

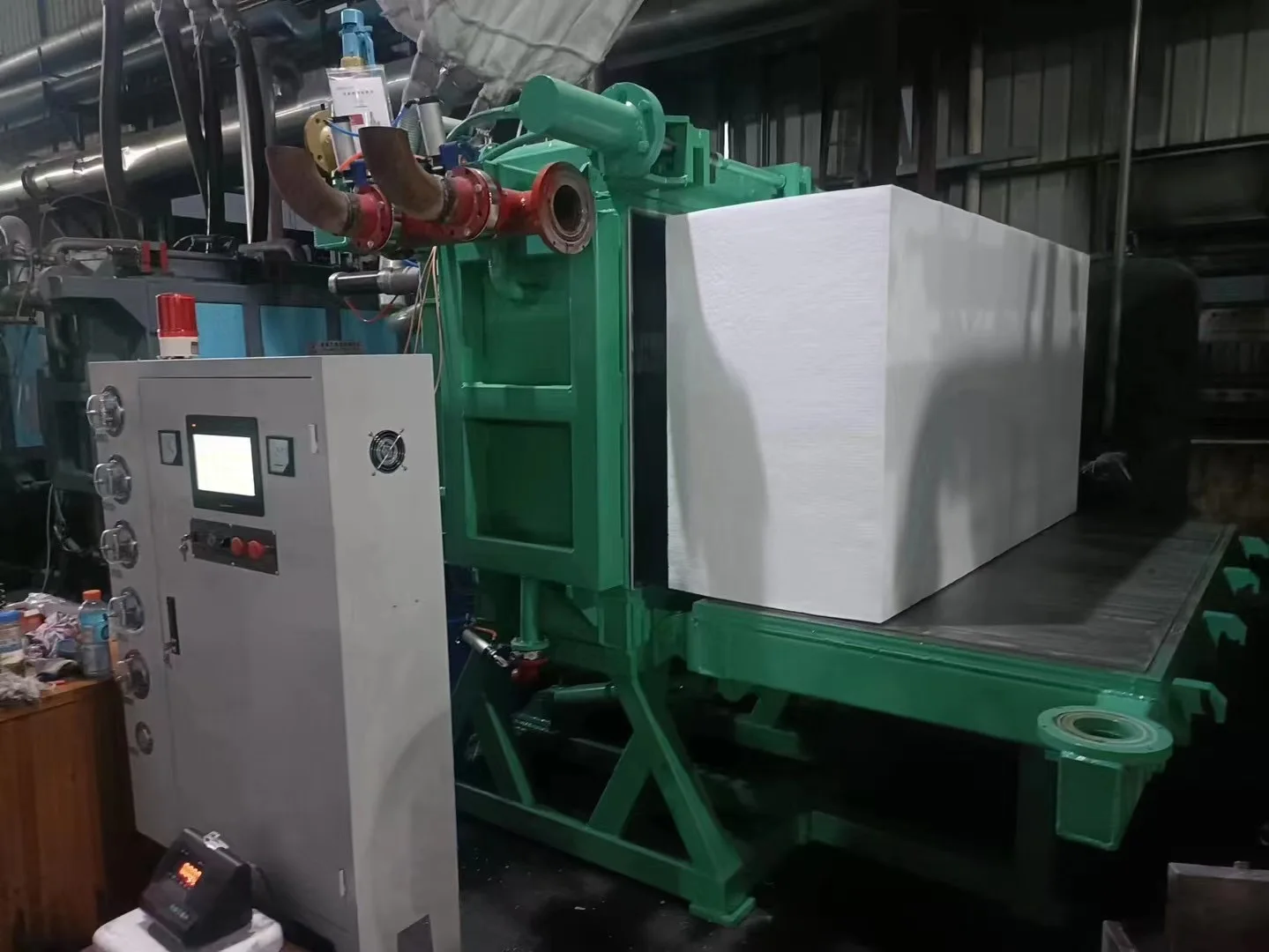

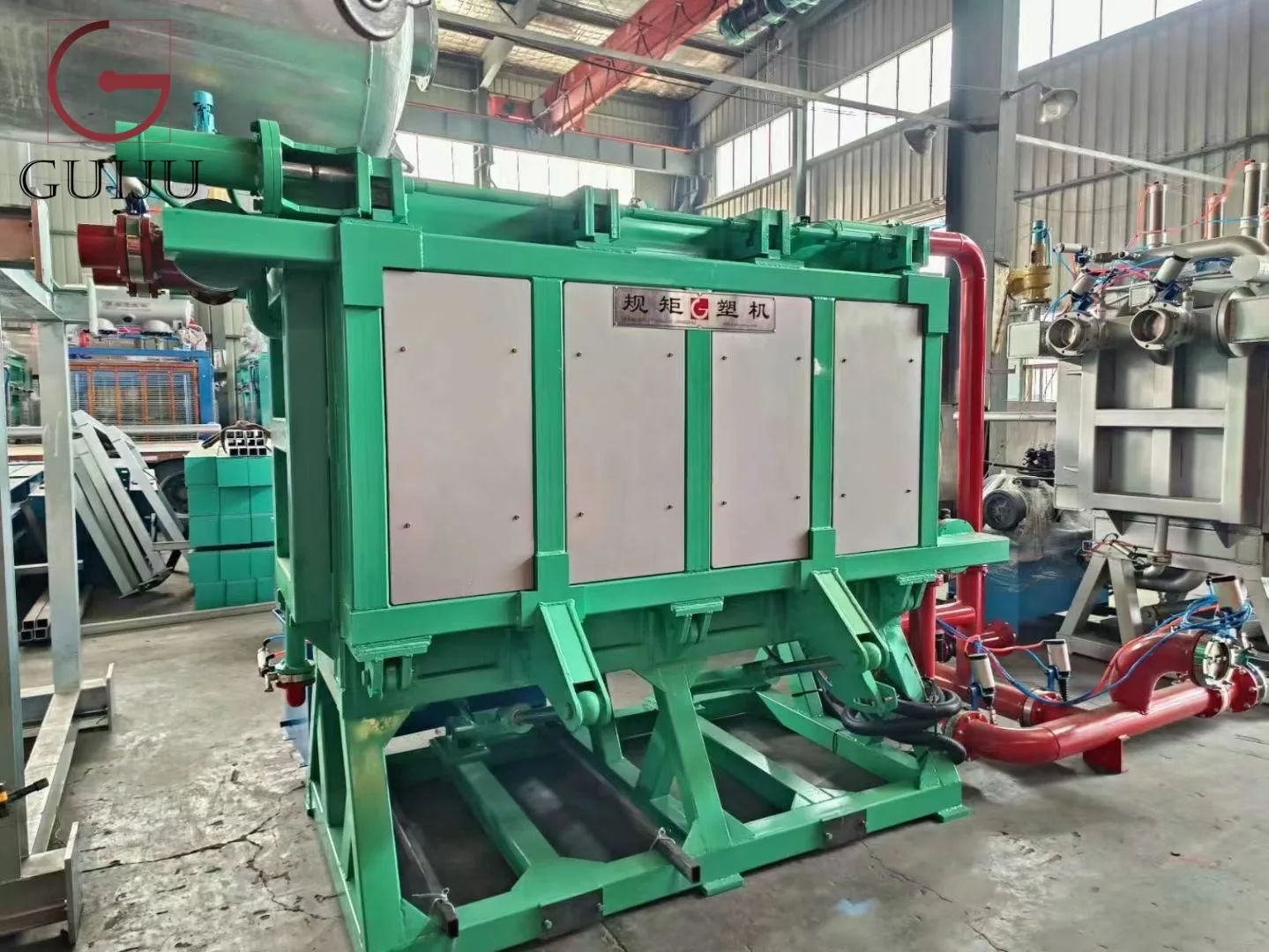

Automatic EPS block molding machine with air cooling
|
model
|
unit
|
GJ-BF-2000
|
GJ-BF-3000
|
GJ-BF-4000
|
GJ-BF-6000
|
|||
|
mould Cavity Size
|
mm
|
2050*1030*530
|
3060*1230*630
|
4080*1230*630
|
6120*1230*630
|
|||
|
foam block size
|
mm
|
2000*1000*500
|
3000*1200*600
|
4000*1200*600
|
6000*1200*600
|
|||
|
steam system
|
inlet size
|
mm
|
DN100
|
DN100
|
DN150
|
DN150
|
||
|
inlet pressure
|
bar
|
5---8
|
5---8
|
5---8
|
5---8
|
|||
|
consumption
|
kg/cycle
|
13---16
|
30---40
|
40---50
|
50---70
|
|||
|
compressed air system
|
inlet size
|
mm
|
DN50
|
DN50
|
DN65
|
DN65
|
||
|
inlet pressure
|
bar
|
5-8
|
5-8
|
5-8
|
5-8
|
|||
|
consumption
|
m³/cycle
|
1-1.5
|
1.5-1.8
|
1.8-2
|
2-2.3
|
|||
|
injector sizeInjector
|
injector NO.
|
4pcs
|
6pcs
|
8pcs
|
11pcs
|
|||
|
injector size
|
DN80
|
DN80
|
DN80
|
DN80
|
||||
|
drainage pipe
|
mm
|
DN125
|
DN150
|
DN150
|
DN150
|
|||
|
cycle Time (12g/l)
|
min/cycle
|
2.5
|
3
|
3.5
|
4
|
|||
|
blower power
|
kw
|
4kw
|
4kw
|
5.5kw
|
7.5kw
|
|||
|
installed Power
|
kw
|
9.5kw
|
9.5kw
|
11kw
|
13kw
|
|||
|
overall Size
|
mm
|
4500*2800*3000
|
5500*2800*3200
|
6700*2800*3200
|
8700*2800*3200
|
|||
|
machine weight
|
kg
|
4800
|
6500
|
8500
|
10000
|
|||
