Guiju Factory Direct Automatic Vertical EPS Block Molding Machine CE Certified EPS Wall Insulation Sheet Production Line

Guiju

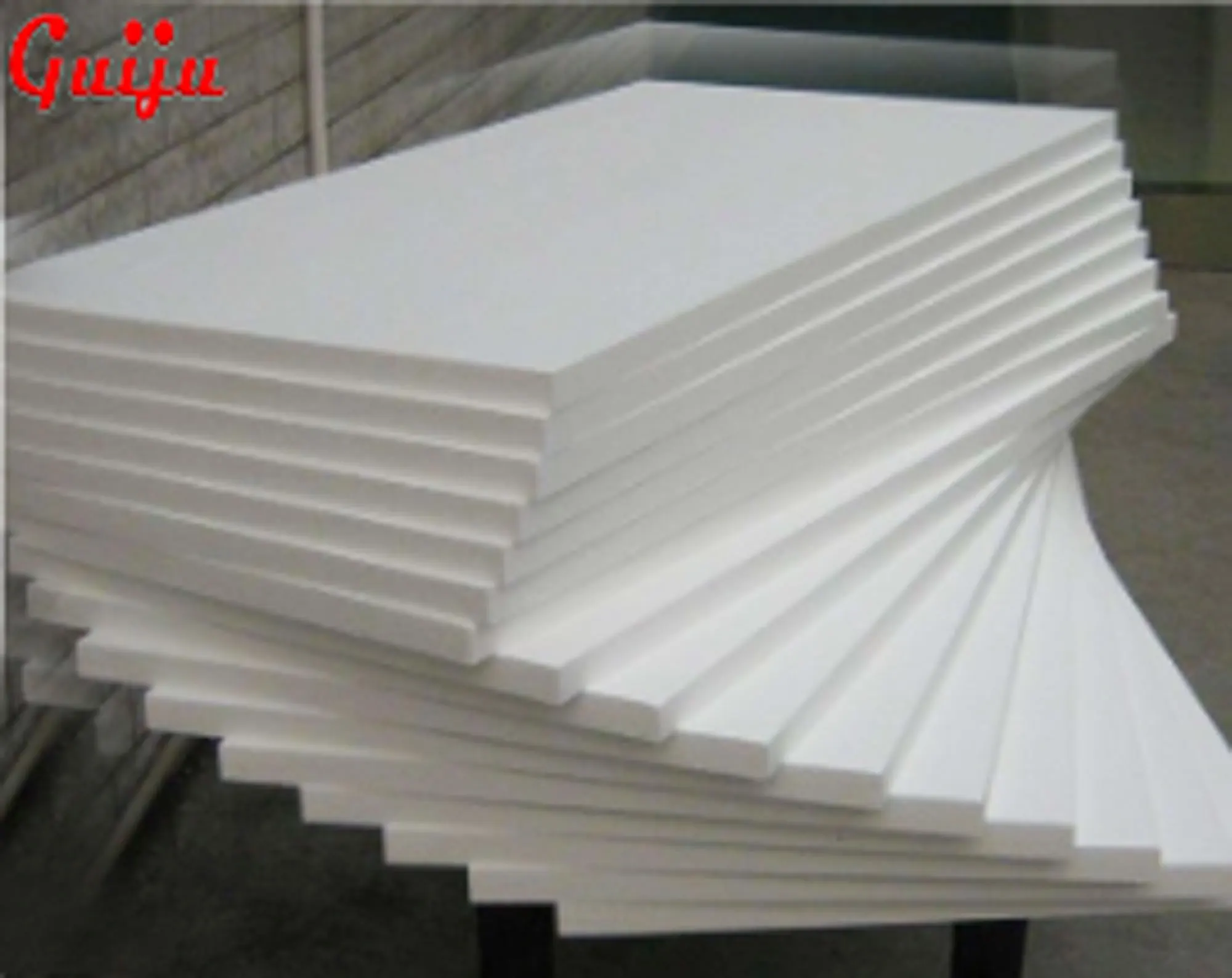

Introducing the Factory Direct Automatic Vertical EPS Block Molding Machine, the ultimate solution for creating EPS wall insulation sheets with ease and efficiency. This CE certified production line from Guiju is the perfect choice for businesses looking to streamline their manufacturing process and produce high-quality insulation sheets.

With its automatic vertical design, this EPS block molding machine is incredibly user-friendly and requires minimal manual labor. This means less time spent on production and more time focused on growing your business. The machine is CE certified, ensuring that it meets strict safety and quality standards, giving you peace of mind knowing that you are investing in a reliable and durable product.

The Guiju Factory Direct Automatic Vertical EPS Block Molding Machine is equipped with advanced technology that allows for precise molding of EPS blocks, resulting guiju in consistent and uniform wall insulation sheets every time. This ensures that your products meet high industry standards and are ready for use in a variety of applications.

Not only is this machine efficient and reliable, but it is also cost-effective. By eliminating the need for manual labor and reducing waste, you can save money on production costs and increase your bottom line. The machine is designed to be energy-efficient, further reducing operating costs and making it an environmentally-friendly choice for businesses looking to reduce their carbon footprint.

Whether you are a small business looking to expand your production capacity or a large corporation in need of a dependable insulation sheet production line, the Guiju Factory Direct Automatic Vertical EPS Block Molding Machine is the perfect solution. With its advanced technology, ease of use, and cost-effectiveness, this machine is sure to meet and exceed your expectations.

Invest in the Guiju Factory Direct Automatic Vertical EPS Block Molding Machine today and take your production to the next level. Experience the difference that quality machinery can make in your business and see the results for yourself. Order now and start producing high-quality EPS wall insulation sheets with ease and efficiency.

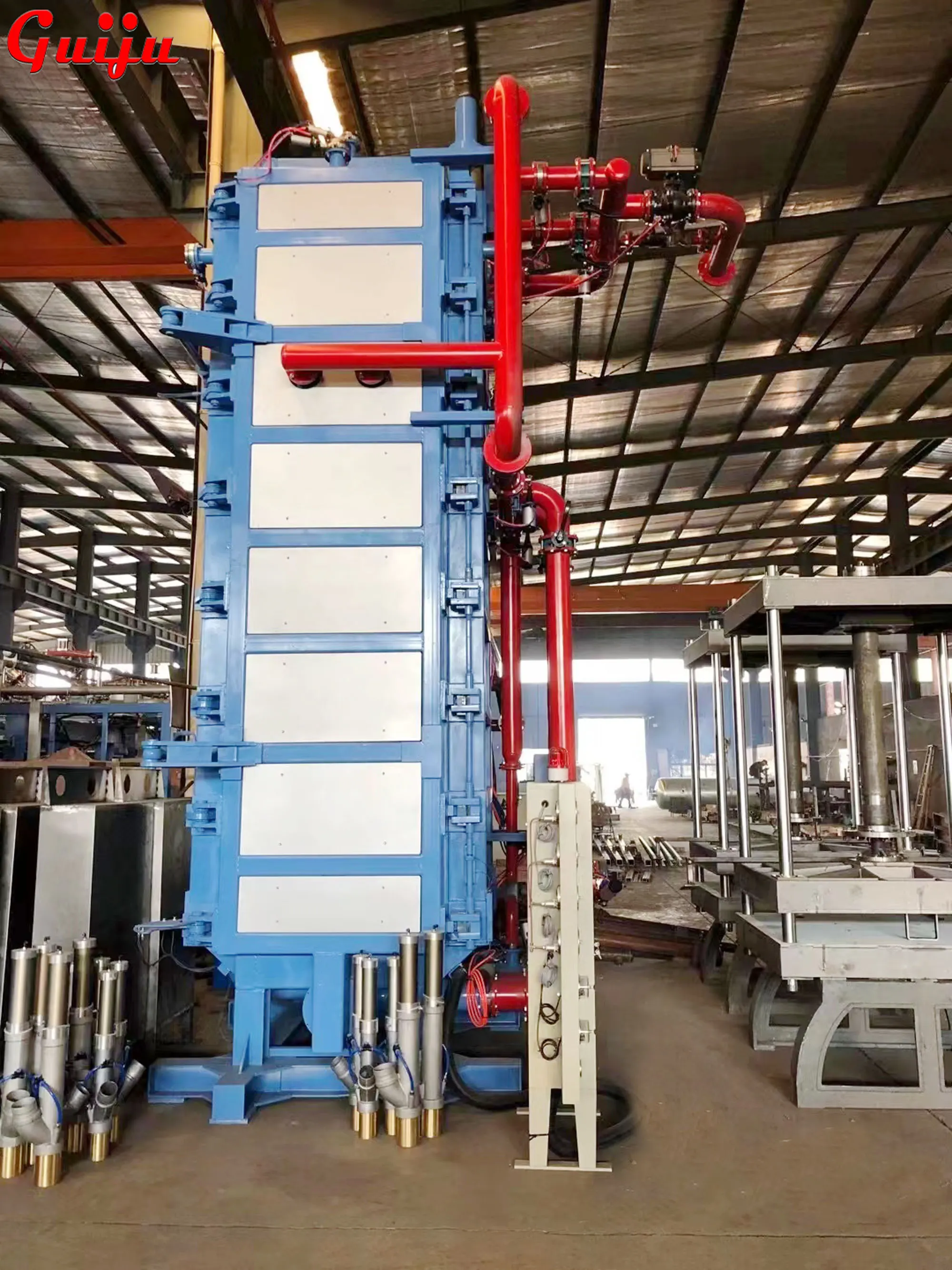

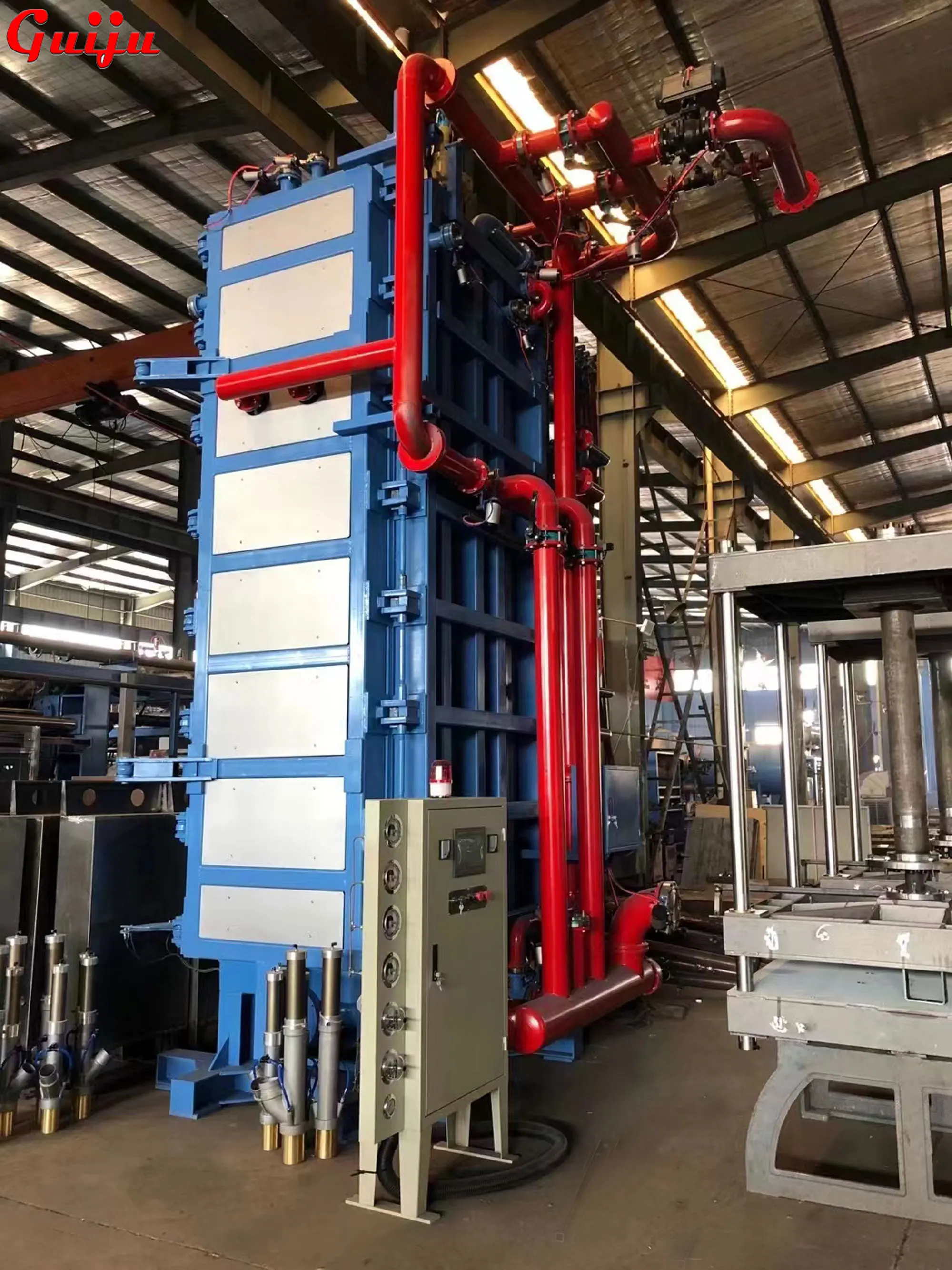

Automatic EPS block molding machine with air cooling

Main feature:

1. this machine also has the advantage of horizontal block molding machine and more suitable for automatic transmission; 2. The machine including: main machine body, transfer rack and weighting device; 3. The mold plates areal welded by high-strength rectangular tubes and steel plates, heat treated, sandblasted and rust removal, extended service life. 4. The machine adopts electrical appliances and multiple mechanical safety protections. 5. The machine occupies less area and has low moisture content. Note: 1. Special specifications can be customized, and adjustable size can also be customized; 2. Optional vacuum system; 3. Optional pressure sensor

Technical data:

model			unit	GJ-BL-2000	GJ-BL-3000	GJ-BL-4000	GJ-BL-6000
mould Cavity Size			mm	2040*1240*1030	3060*1240*1030	4080*1240*1030	6100*1200*1030
foam block size			mm	2000*1200*1000	3000*1200*1000	4000*1200*1000	6000*1200*1000
steam system	inlet size	mm	DN150	DN150	DN200	DN200
		inlet pressure	bar	6---8	6---8	6---8	6---8
		consumption	kg/cycle	20---35	30---55	40---70	70---90
compressed air system	inlet size	mm	DN65	DN65	DN80	DN80
		inlet pressure	bar	5---7	5---7	5---7	5---7
		consumption	m³/cycle	1-1.5	1.5-1.8	1.8-2	2-2.3
drainage	drainage outlet	mm	DN125	DN125	DN150	DN150
		fan outlet	mm	DN150	DN150	DN150	DN200
cycle time			min/cycle	5---8	5---8	6---10	8---12
installed Power			kw	11kw	11kw	15kw	18.5kw
overall Size			mm	4000*5800*3300	4000*5800*4300	4000*5800*5300	4000*5800*7300
machine weight			kg	6800	8000	9800	12600
