GUIJU Factory Direct Sale EPS ICF Block Molding Machine CE Certified EPS Styrofoam Insulation Block Making Machine

  • Overview
  • Recommended Products

Introducing, the GUIJU’s Factory Direct Sale EPS ICF Block Molding Machine, a top-of-the-line EPS Styrofoam Insulation Block Making Machine that is CE Certified for its quality and performance. Created by the trusted brand GUIJU, this machine is designed to provide superior results in the construction industry.



The EPS ICF Block Molding Machine is perfect for creating insulated concrete forms that are essential for energy-efficient and durable building projects. With this machine, you can easily produce EPS blocks that will serve as excellent insulation for walls, roofs, and floors. The blocks made by this machine are lightweight, yet strong, providing the perfect balance of efficiency and durability.



This state-of-the-art machine is equipped with advanced technology that allows for precise and efficient block production. The GUIJU’s Factory Direct Sale EPS ICF Block Molding Machine is easy to operate and features a user-friendly interface that makes it suitable for both beginners and experienced users. With its CE Certification, you can trust that this machine meets the highest quality and safety standards.



Whether you are a contractor, builder, or DIY enthusiast, the EPS Styrofoam Insulation Block Making Machine from GUIJU is a must-have tool for your construction projects. It will save you time and effort while delivering superior results that will exceed your expectations. Plus, with its direct sale option, you can enjoy competitive pricing and excellent customer service directly from the manufacturer.



Invest in the GUIJU’s Factory Direct Sale EPS ICF Block Molding Machine today and take your construction projects to the next level. With its high-quality construction, innovative features, and reliable performance, this machine is sure to become an essential part of your toolkit. Don't miss out on this opportunity to elevate your building projects with the best EPS Styrofoam Insulation Block Making Machine on the market

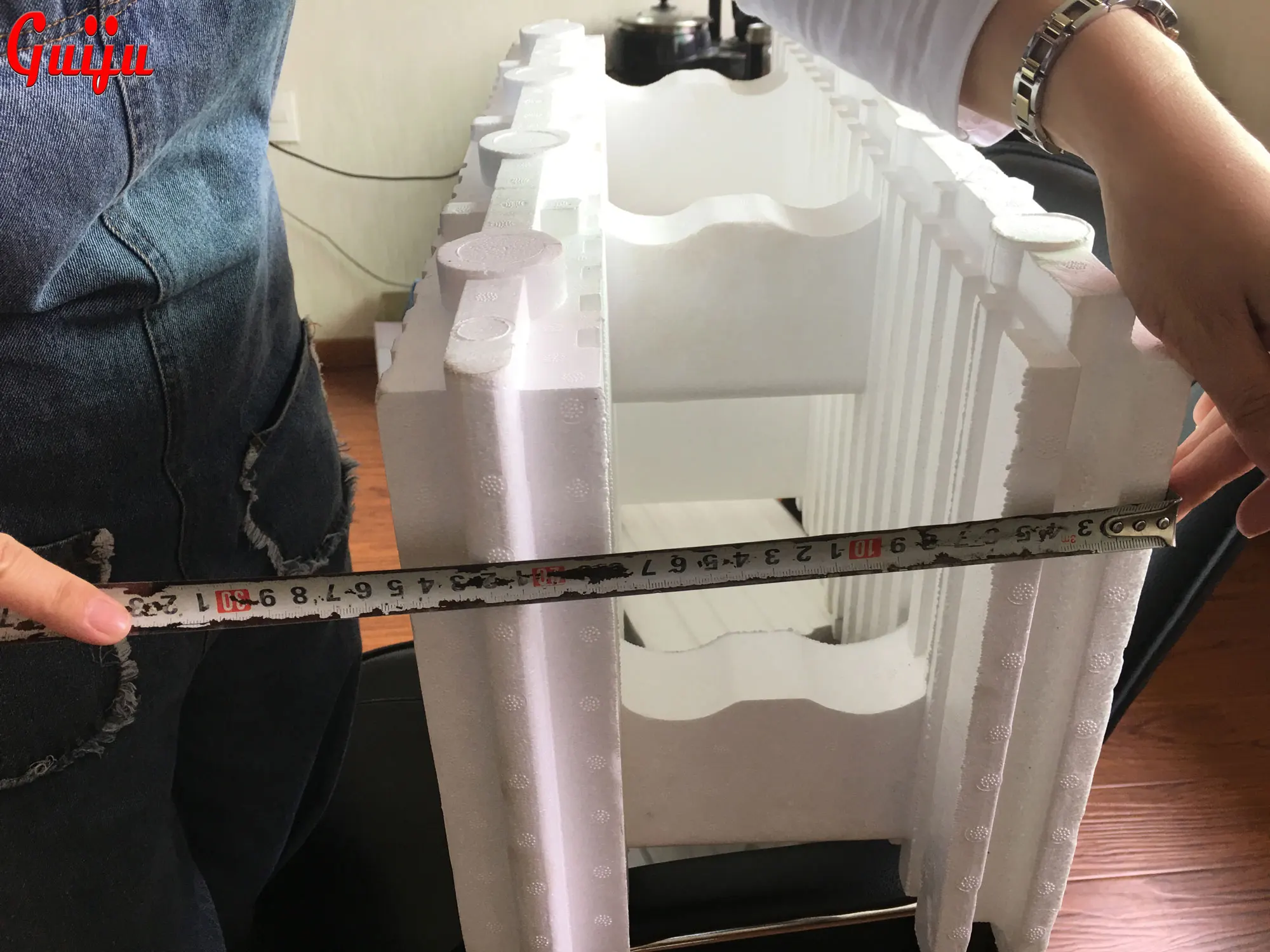

product guiju factory direct sale eps icf block molding machine ce certified eps styrofoam insulation block making machine-1

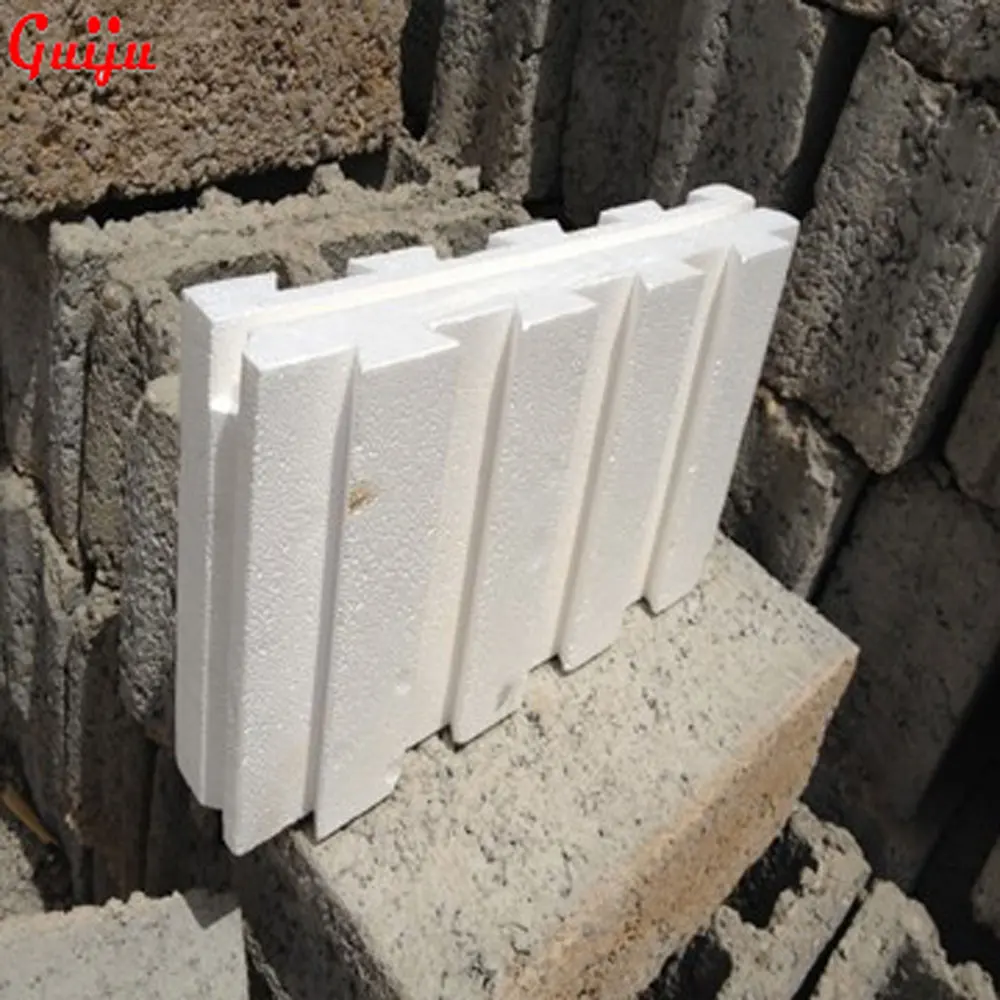

product guiju factory direct sale eps icf block molding machine ce certified eps styrofoam insulation block making machine-2

Top sales automatic eps shape molding machine with vacuum cooling

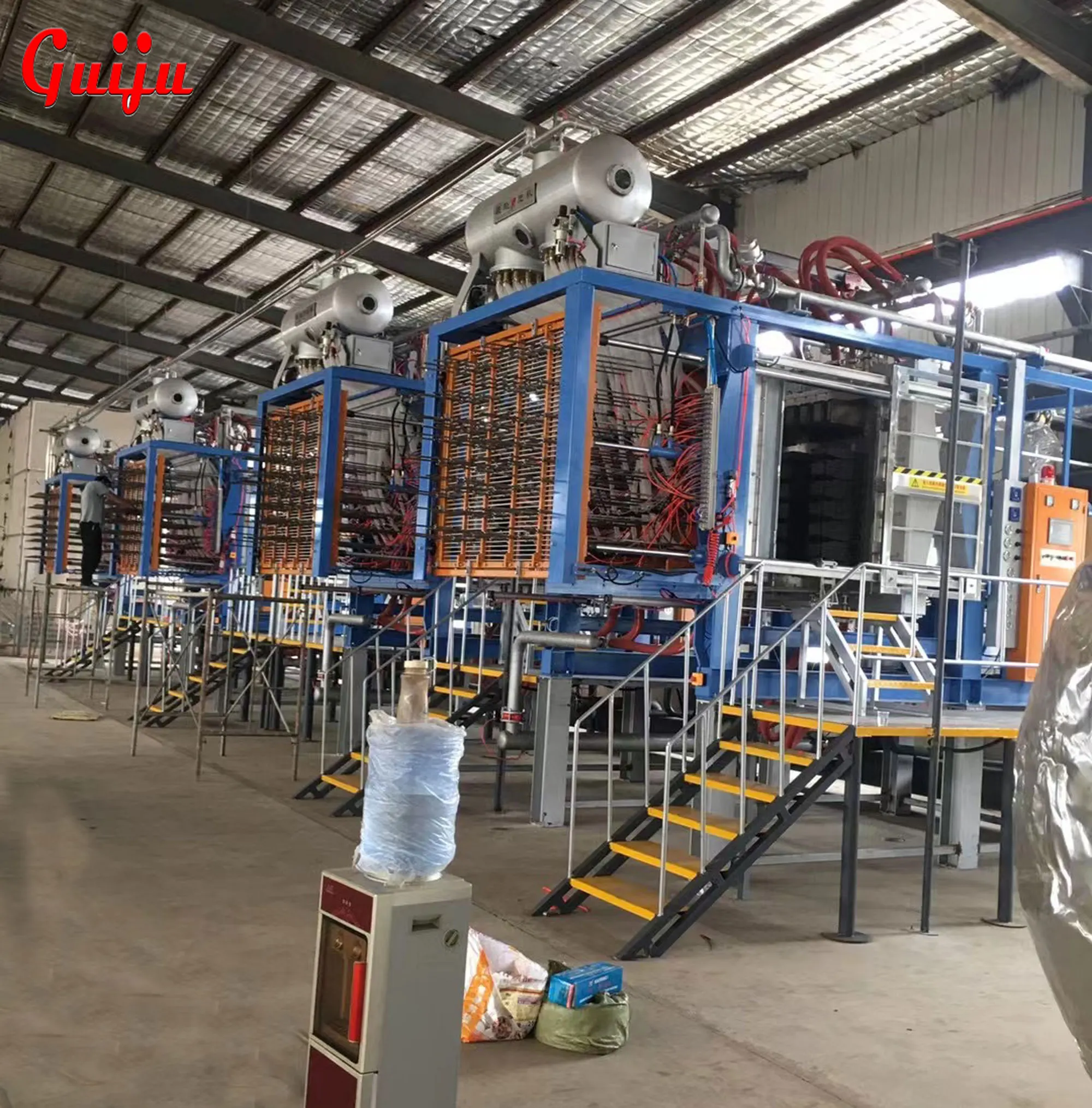

product guiju factory direct sale eps icf block molding machine ce certified eps styrofoam insulation block making machine-3

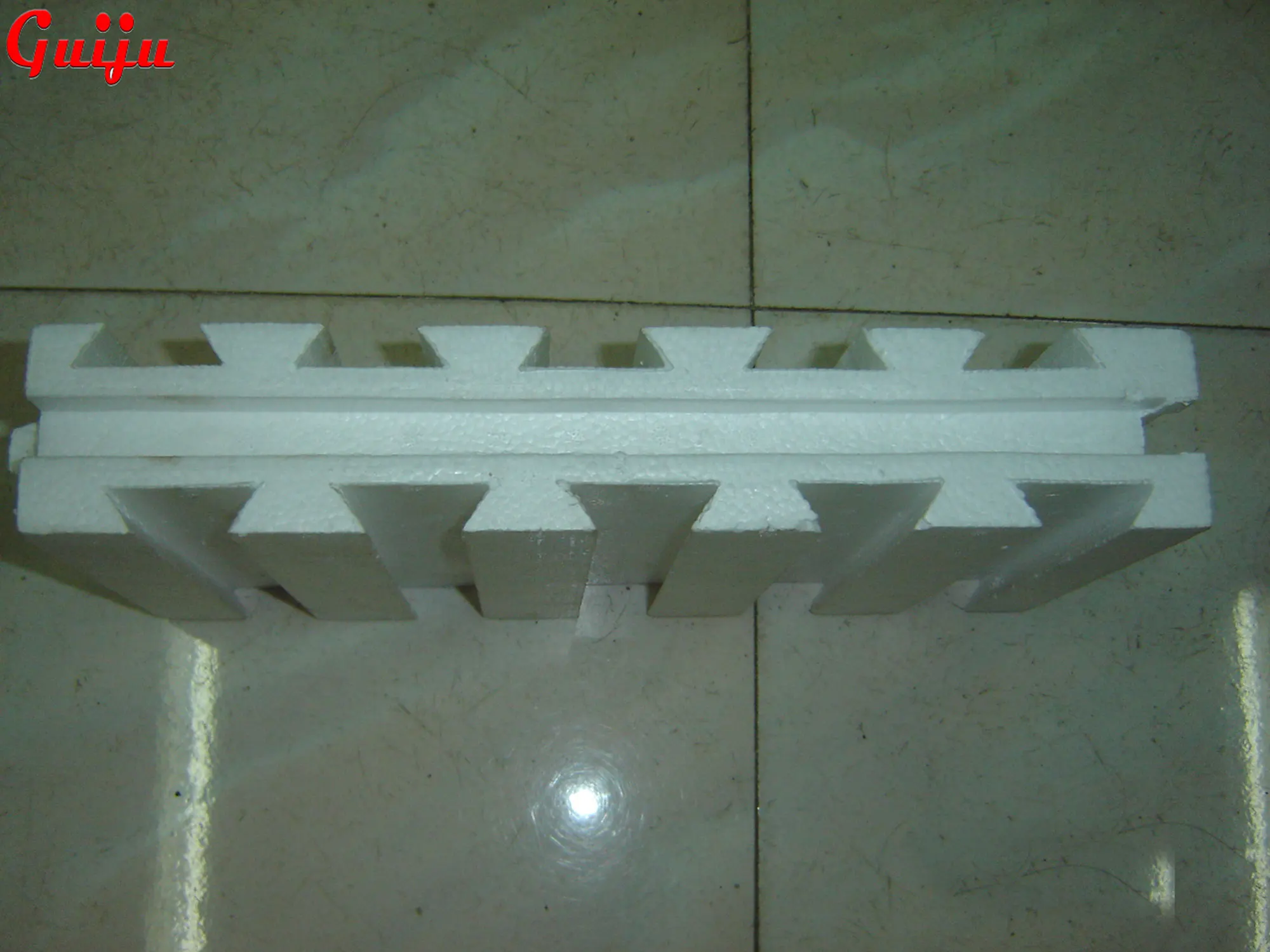

product guiju factory direct sale eps icf block molding machine ce certified eps styrofoam insulation block making machine-4

Main feature:

1. It is made of 16---22mm steel plate welded with carbon dioxide shielded welding. All templates are treated with high temperature tempering and high pressure shot peening, so it has high strength and high surface hardness; 2. The template is processed by CNC numerical control, after processing, the surface is sprayed with zinc to prolong the service life of the whole machine; 3. The hopper adopts horizontal or vertical double turntable, total have 44 pcs discharge outlet, can meet customer’s demand for multi-product, multi-filling gun; 4. It adopts the heating principle of low pressure and large flow, and with double steam valves, steam valve is controlled by balance valve and air control valve, make sure the steam pressure more precise

Technical data

Subjects

Unit
GJ-ZK-1210
GJ-ZK-1412
GJ-ZK-1513
GJ-ZK-1715
GJ-ZK-1816




Standard mould size

mm
1200×1000
1400×1200
1500×1300
1750×1550
1850×1600




Rear Window size

mm
1100×900
1250×1120
1350×1150
1600×1400
  1700×1450




Max. Product size

mm
1030×830
1230×1030
1330×1130
1580×1380
1680×1430




Max. thickness size

mm
400
400
400
400
400







steam system
Inlet size
mm
DN80
DN80
DN80
DN100
DN100






Mould inlet
/
DN25
DN40
DN40
DN40
DN40





steam
Inlet pressure
Bar
3~6
3~6
3~6
3~6
3~6





Consumption
Kg/Cycle
raw material consumption per ton is about 10---12 tons





Air system
Inlet size
mm
DN50
DN50
DN50
DN50
DN50






Inlet pressure
bar
4~5
4~5
4~5
4~5
4~5





Consumption
m3/Cycle
1.5
1.8
2
2
2.2







Cooling
Water
System
Inlet size
mm
DN80
DN80
DN80
DN80
DN80






Mould inlet
mm
DN25
DN25
DN25
DN25
DN25





Inlet pressure
bar
3~4
3~4
3~4
3~4
3~4





Consumption
Kg/Cycle
40~120
50~140
50~160
60~180
70~190





Temperature
40~50
40~50
40~50
40~50
40~50







Vacuum System
drainage outlet
mm
DN80
DN80
DN80
DN80
DN80






vacuum motor power
kw
4
5.5
5.5
7.5
7.5





vacuum pump capacity
m³/h
165
230
230
280
280




Drainage system
Outlet size
mm
DN100
DN150
DN150
DN150
DN150





Cycle Time

S/Cycle
50~90
50~130
70~160
80~180
90~180




Installation power

kw
11
12.5
12.5
16.5
16.5




Oversize - L*W*H

mm
5200×2100×3700
5200×2300×3600
5200×2400×3800
5300×2700×4000
5300×2800×4100




Machine Weight

Kg
5300
5900
6100
7100
7400

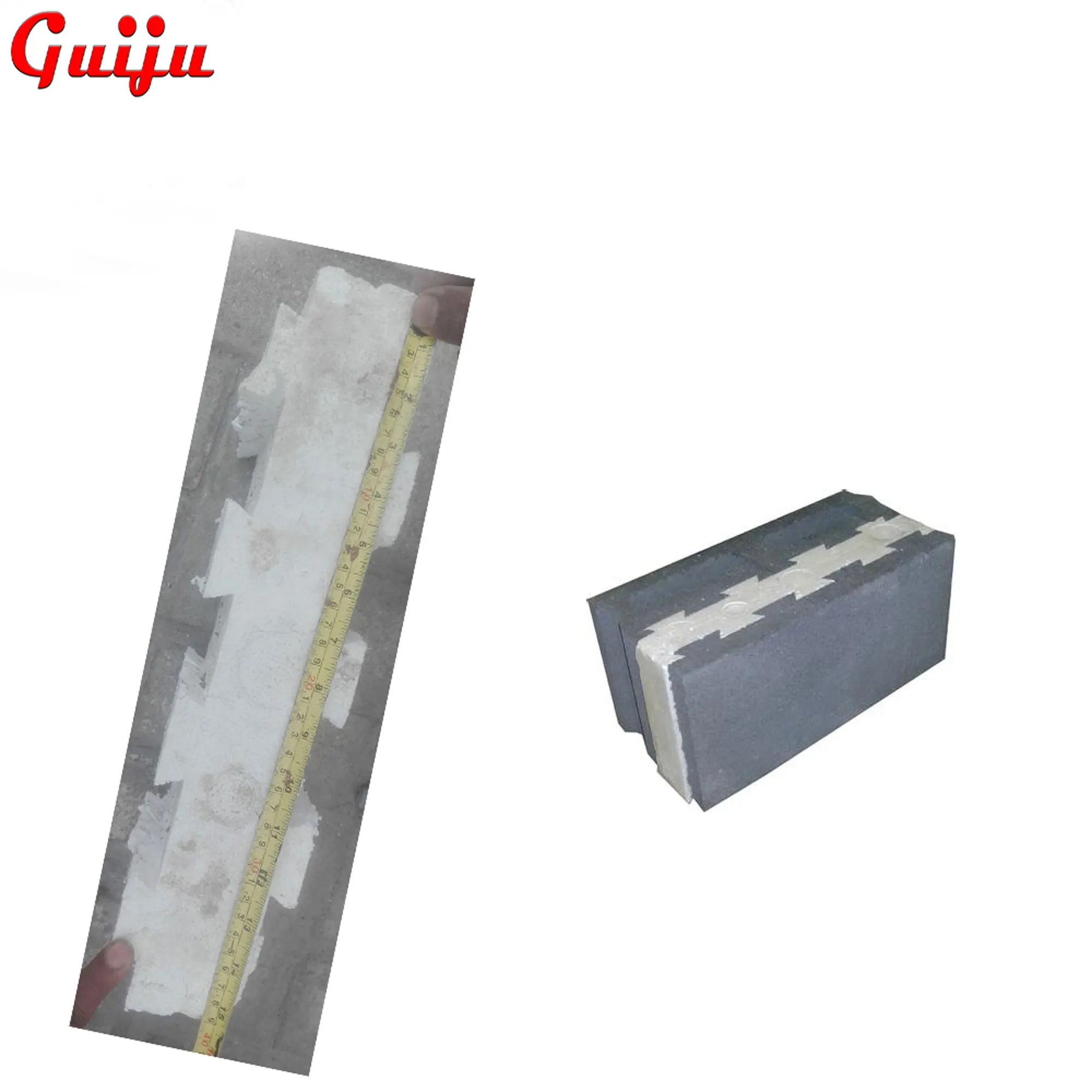

product guiju factory direct sale eps icf block molding machine ce certified eps styrofoam insulation block making machine-5
