High quality eps foam machine continuous pre-expander machine polystyrene foam beads foaming machine for lightweight wall panel
- Overview
- Recommended Products

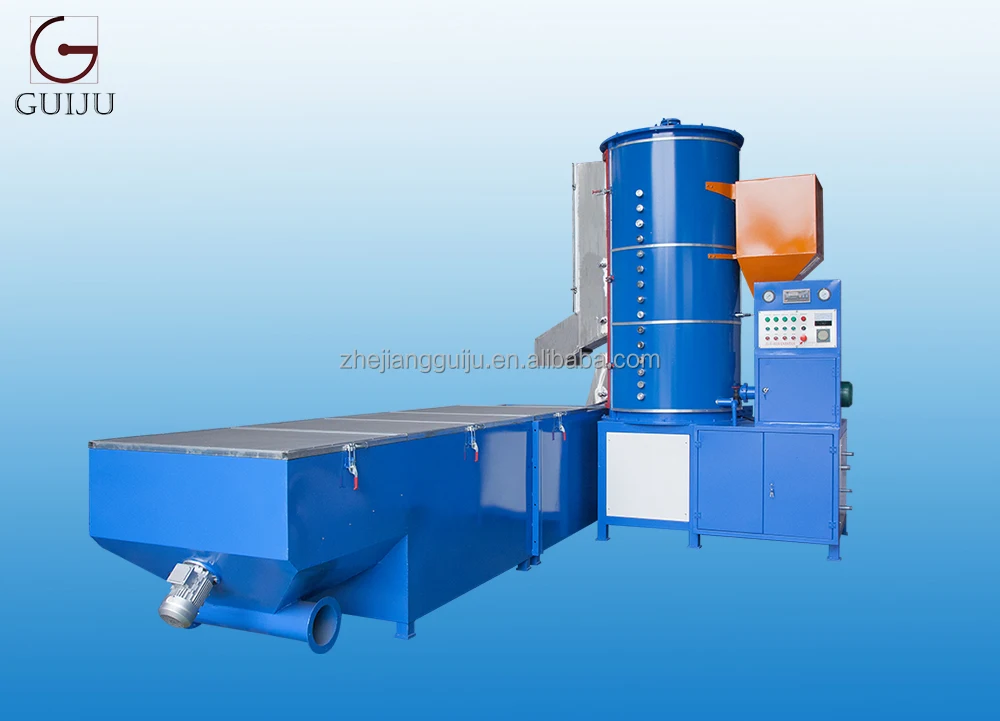

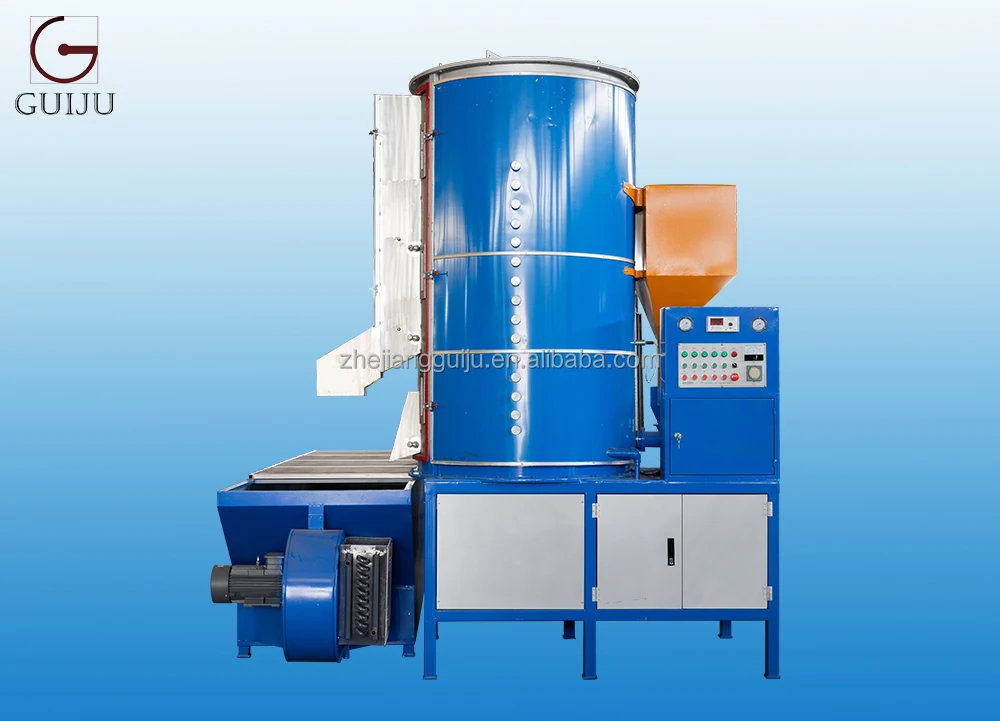

Continuous eps pre-expander machine
|
Model
|
unit
|
GJ-FL-800
|
GJ-FL-900
|
GJ-FL-1200
|
||
|
Chamber size
|
mm
|
Φ800*1700
|
Φ900*1900
|
Φ1200*2100
|
||
|
Expansion Rate
|
g/l
|
8---25
|
8---25
|
8---25
|
||
|
Density Tolerance
|
/
|
≤±5%
|
≤±5%
|
≤±5%
|
||
|
eps beads overflow heigh
|
mm
|
1450
|
1650
|
1850
|
||
|
First time expansion
|
screw diameter
|
mm
|
80
|
80
|
80
|
|
|
production efficiency
|
kg/h
|
80---250
|
100---300
|
150---400
|
||
|
Second time expansion
|
screw diameter
|
mm
|
165
|
165
|
165
|
|
|
production efficiency
|
kg/h
|
70---180
|
80---200
|
100---300
|
||
|
First Time Feeding Material Motor
|
kw
|
0.55
|
0.55
|
0.55
|
||
|
Second Time Feeding Material Motor
|
kw
|
0.55
|
0.55
|
0.55
|
||
|
Installed Power（with dryer bed)
|
kw
|
9.05
|
9.05
|
11.65
|
||
|
Overall Dimension
|
mm
|
2100*1850*2900
|
2190*1950*3100
|
2500*2250*3300
|
||
|
Machine Weight
|
kg
|
1550
|
1600
|
1900
|
||
