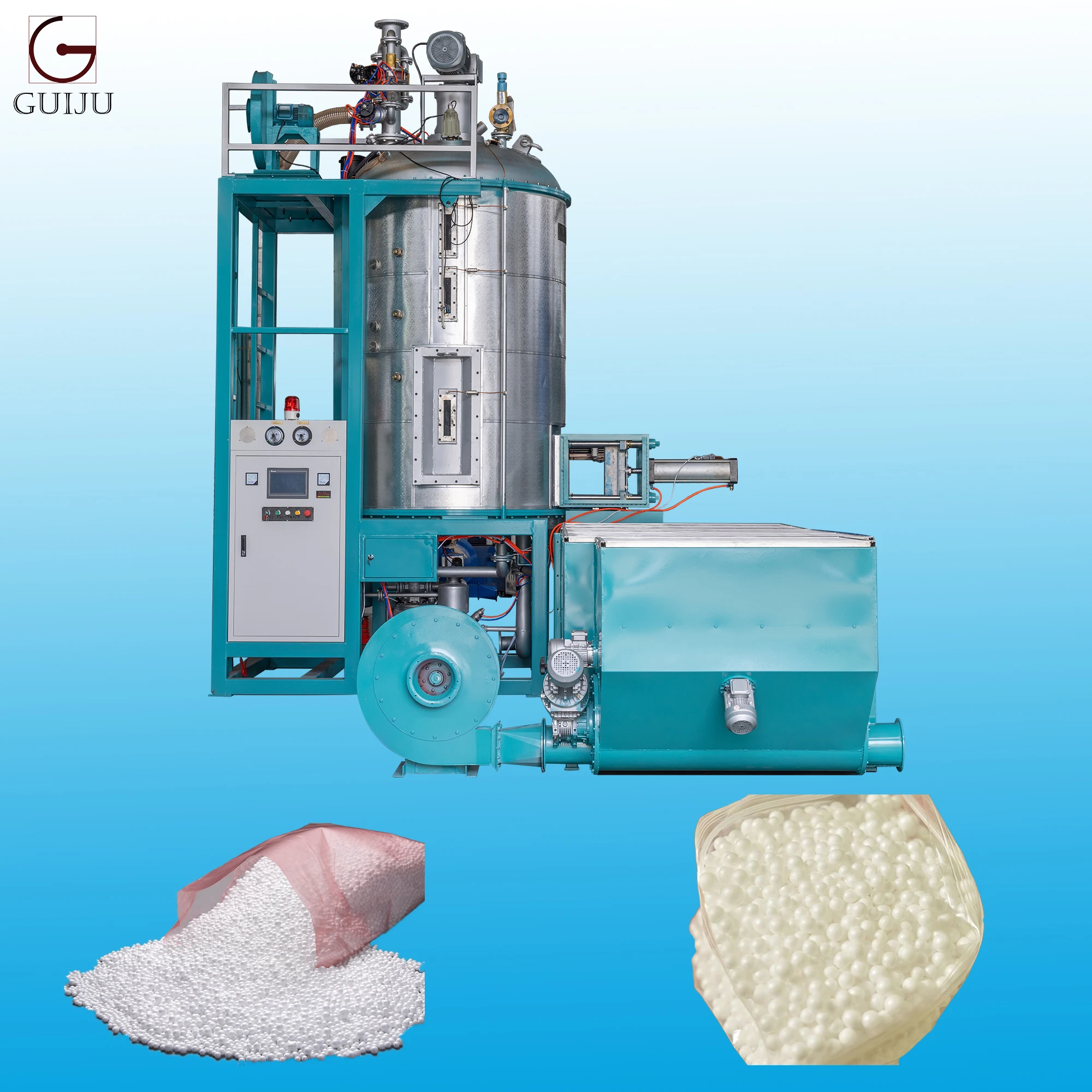

New EPS Foam Machine Manufacturer Batch EPS Pre Expander Machine Beads Production Line High Quality Foam Beads Making Machine
- Overview
- Recommended Products
Guiju
Introducing the latest innovation in foam production technology, the New EPS Foam Machine Manufacturer Batch EPS Pre Expander Machine Beads Production Line! Created by the renowned brand, this high-quality foam beads making machine is guaranteed to revolutionize the way you create foam products.
This state-of-the-art machine is designed to meet the demands of modern foam production, providing an efficient and cost-effective solution for manufacturers. With its advanced batch EPS pre-expander technology, this guiju machine is able to produce high-quality foam beads with precision and consistency.
What sets this machine apart is its ability to produce foam beads in large batches, making it ideal for high-volume production. With its user-friendly interface and automated controls, operators can easily adjust settings to achieve the desired bead size and density.
Not only does the New EPS Foam Machine Manufacturer Batch EPS Pre Expander Machine Beads Production Line offer exceptional performance, but it also prioritizes safety and environmental sustainability. The machine is equipped with safety features to protect operators during operation, ensuring a safe working environment. Additionally, it is designed to minimize energy consumption and reduce waste, making it an eco-friendly choice for foam production.
Whether you are producing packaging materials, insulation products, or decorative items, this foam beads making machine is versatile enough to meet a wide range of production needs. Its durable construction and reliable performance ensure that you can count on it to deliver consistent results, batch after batch.
With Guiju's reputation for excellence and innovation in the foam production industry, you can trust that the New EPS Foam Machine Manufacturer Batch EPS Pre Expander Machine Beads Production Line is a top-of-the-line investment for your business. Upgrade your foam production process today and experience the difference that this high-quality machine can make in your production efficiency and product quality.
Automatic eps batch pre-expander machine
Model |
unit |
GJ-FJ-1100 |
GJ-FJ-1500 |
||
Chamber size |
mm |
Φ1100*1500 |
Φ1500*2200 |
||
Volume |
m³ |
1.4 |
3.8 |
||
Expansion Rate |
kg/m³ |
10-30 |
4-30 |
||
Density Tolerance |
≤±3% |
≤±5% |
|||
Throughput
|
4g/l |
Kg/H |
-- |
180 |
|
10g/l |
Kg/H |
200 |
400 |
||
12g/l |
Kg/H |
240 |
600 |
||
15g/l |
Kg/H |
320 |
900 |
||
Steam system
|
Inlet |
mm |
DN50 |
DN50 |
|
Working pressure |
bar |
3---8 |
3---8 |
||
Compressed air
|
Inlet |
mm |
DN40 |
DN50 |
|
Working pressure |
bar |
6---8 |
6---8 |
||
Drain outlet
|
Drain outlet |
mm |
DN80 |
DN100 |
|
Fan Outlet |
mm |
Φ80 |
DN100 |
||
Energy consumption
|
Steam consumption |
kg/cycle |
8---11 |
13---16 |
|
Air consumption |
m³/cycle |
0.5---0.6 |
0.5---0.6 |
||
Installed power |
kw |
21 |
33 |
||
Overall Dimension |
mm |
6800*3200*4600 |
7400*4400*5400 |
||
Machine weight |
kg |
3500 |
4500 |
||
